Remote Control Solar 200mm Portable Traffic Light

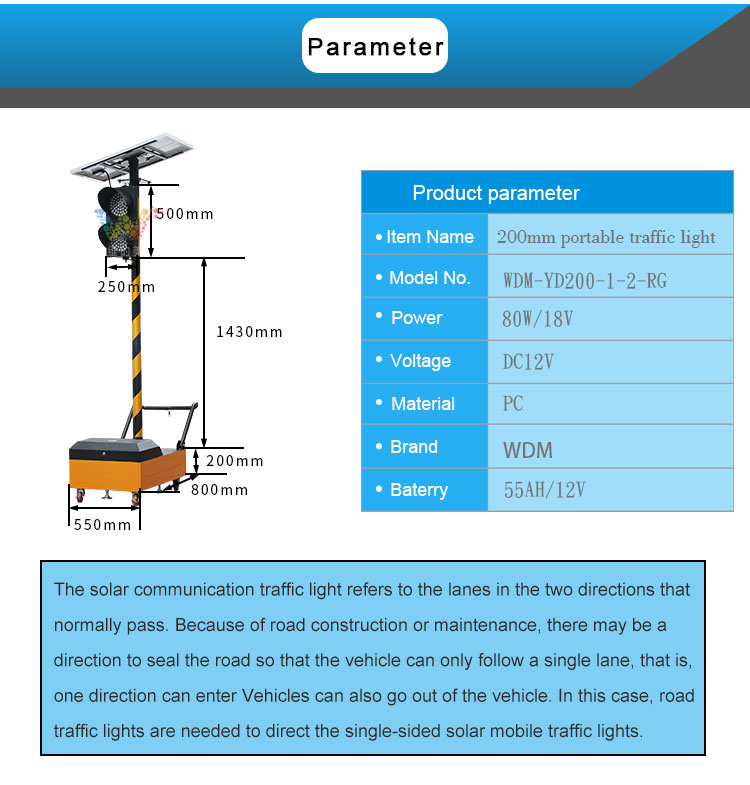

Remote Control Solar 200mm Portable Traffic Light parameter list:

Product name: Solar single side red green moving traffic light
Number of lamp beads: 50pcs for red and green
Product model: WDM-YD200-1-2-RG
Product size: 2460*800*400MM
Lamp beads category: Taiwan Epistar chip lamp beads
Single lamp power: ≤3.6W
Working voltage: DC12V
Working temperature: -40℃-65℃
Solar panel: 60W/18V
Battery: 55AH
Visible distance: 1000M
Service life: 100000H
Shell material: PC/sheet metal
Beam angle: 30°
Protection level: IP53

The characteristics of Remote Control Solar 200mm Portable Traffic Light:
1. Solar power supply, energy saving, low power consumption, green energy, economic and environmental protection. Easy to install. No external power supply, no need to lay lines.
2. Low power consumption, large viewing angle, super high brightness, long viewing distance, long working time. Once fully charged, it can work continuously for 120 hours, light control mode can work 10 rainy days, 24 hours mode can work 5 rainy days.
3. Good tightness, the luminous part of the lamp body is filled with glue, and the waterproof level is high.
4. Novel structure and beautiful appearance. Sturdy and durable, the box body is made of high-quality sheet metal, stable and reliable, high protection level, impact resistance, anti-aging, corrosion resistance. The solar panel is covered with tempered glass and has a service life of up to 20 years.
5. This product is equipped with main and auxiliary lights, that is, two mobile lights are used together.
6. LED adopts Taiwan Epistar chip, service life ≥100000 hours, high brightness, unique optical system, uniform chromaticity, good warning effect and slow light attenuation.
7. Comply with GB/14887-2003 and relevant international standards.

Remote Control Solar 200mm Portable Traffic Light installation:
Solar panel installation:
1. Assemble the solar panel and solar bracket and tighten the screws;

2. Install the solar panel with the bracket installed on the bevel bracket and tighten with screws.

Light box installation method:
1. Install the sun visor on the upper part of the lamp, put the sun visor on the lamp, and tighten the screw to the corresponding hole position;

2. There is a screw on both ends, unscrew the nut above the screw, punch 2 holes on the signal light rod, drill holes according to the hole position of the signal L bracket, use a suitable screw to pass through the light rod, and insert the L-shaped bracket Put on the screw and fix it with the nut

Light pole and trolley installation:
1. Install the installed solar panel and light box on the light pole in sequence, and the wire passes through the light pole;

2. The solar panel is installed on the top of the light pole lamp, and the hole position of the bevel bracket is aligned with the hole position of the upper end of the light pole and fixed with screws;

3. Drill holes according to the position of the L-bracket of the signal, use a suitable screw to pass through the lamp post, and put the L-bracket on the screw and fix it with the nut.
4. Align the holes on the flange at the bottom of the pole where the solar panel and the lamp are installed with the holes on the trolley, and then fasten with M12 screw + shrapnel + gasket. (The screw is covered with shrapnel first, then the gasket)

Remote Control Solar 200mm Portable Traffic Light accessories details:
In addition to solar single-sided two-lamp moving traffic lights, Vimee also produces other traffic lights:
Solar Road Stud Lights
Outdoor Led Display Board
Solar Traffic Fog Light
125mm Traffic Light
Pedestrian Traffic Light
Mini Traffic Light Module

Led Traffic Light Module

Contact us if you need more details on 200mm Portable Traffic Light. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Solar Traffic Light、Remote Control Traffic Lights. If these products fail to match your need, please contact us and we would like to provide relevant information.
